A practical, non-misleading method for evaluating LCD panel image quality and agreeing project-specific acceptance criteria before production and shipment.
Key takeaways
- Use the same test sequence and environment for every unit.
- Separate pixel anomalies from uniformity, leakage and signal issues.
- Judge defects in the context of normal viewing as well as test patterns.
- Agree thresholds before production, not after shipment.

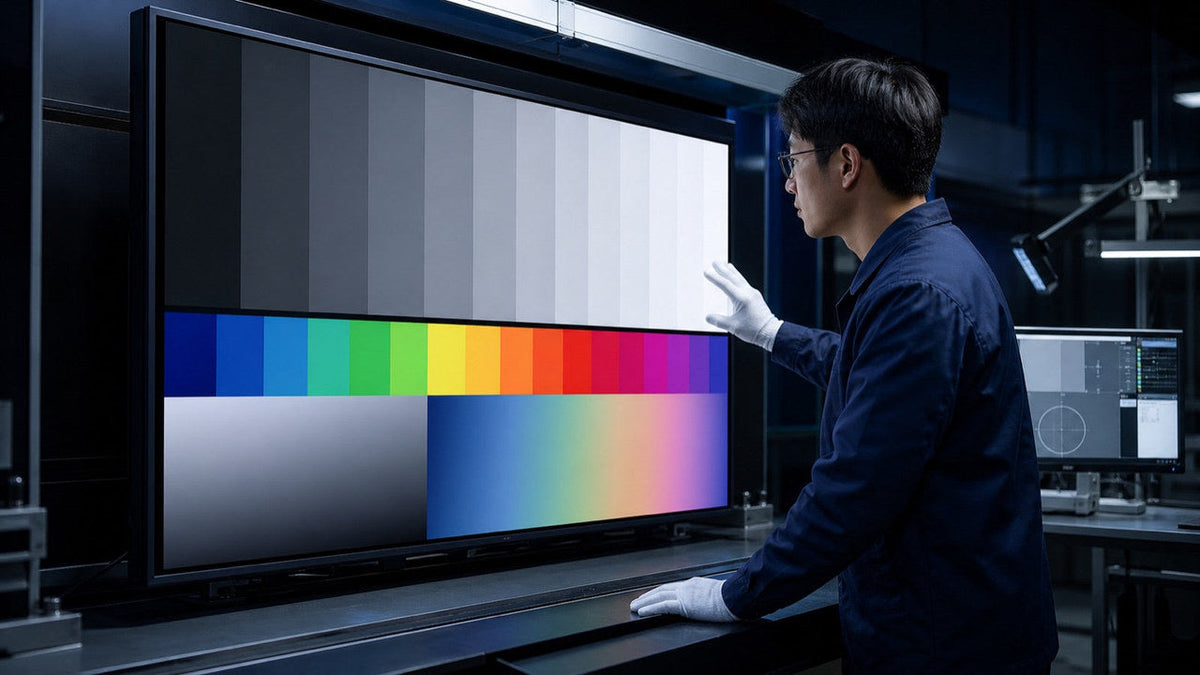

Create a controlled inspection setup
Use a stable signal at the display’s native resolution, consistent brightness settings and a defined ambient-light condition. Allow the unit to reach normal operating state before assessment.
Record test distance and viewing angle. Extreme close-up inspection can reveal panel structure that is invisible in normal use; project acceptance should distinguish laboratory observation from user-visible impact.
Test solid colors and pixel behavior
Display black, white, red, green and blue fields. Note bright, dark or stuck points by location, cluster and visibility. Confirm the signal path before attributing an artifact to the panel.
Pixel acceptance varies by panel, supplier policy and project. Request the applicable policy in writing and avoid promising “zero defects” unless a specific contract and inspection method support it.
Assess uniformity and light leakage
Use white and mid-gray fields to look for luminance or color non-uniformity. Use a dark field in the agreed ambient condition to inspect edge light leakage and clouding.
Photographs can exaggerate or hide effects because of camera exposure. Record camera settings when photos are evidence and pair them with a trained visual assessment from the defined viewing position.
Check gradients, color and motion
Gradients can reveal banding or processing problems. Reference images help compare skin tones, neutral grays and saturated colors. Motion clips expose judder, tearing or player issues.
For multi-screen projects, evaluate inter-unit consistency and define whether field calibration is part of commissioning. Exact color requirements should be tied to a measurable target and instrument method.
Inspect viewing angle and content reality
Move through the expected viewer positions and observe contrast, color and readability. A panel that passes head-on may not fit a wide corridor or elevated mount.
Finish with production content at normal brightness. Acceptance should protect the real customer experience, not optimize only for test patterns.
Document and disposition findings
Mark defect position on a diagram, attach photos, record model/serial, test file, settings and inspector. Classify findings as acceptable, repair, panel replacement or further diagnosis.
Consistent records help factories identify patterns and prevent repeated debate between buyer, integrator and manufacturer.
Decision table
| Test pattern | Reveals | Record |
|---|---|---|
| Solid RGB/white | Pixel anomalies and color issues | Position and visibility |
| Gray field | Uniformity and banding | Area and severity |
| Black field | Leakage and clouding | Ambient condition |
| Motion/reference media | Processing and real-content impact | File and settings |
Pre-purchase checklist
- Native-resolution stable signal used
- Warm-up and settings recorded
- Solid colors and gray tested
- Black field reviewed in defined light
- Viewing positions checked
- Findings classified with evidence
Frequently asked questions
Does every bright point mean the panel must be rejected?
Not automatically. Apply the agreed panel or project acceptance policy, location and visibility criteria.
Can a phone photo prove LCD uniformity?
It can support documentation, but automatic exposure may distort the result. Use controlled settings and visual assessment.
Why test real content after patterns?
Patterns isolate defects; real content shows whether they affect the intended viewer experience.
Continue your research
Editorial note: This guide provides a project-planning framework. Final specifications, environmental ratings, warranty coverage and acceptance criteria must be confirmed for the exact model and purchase agreement.
