INDOOR DIGITAL SIGNAGE · ULTRA-THIN SERIES

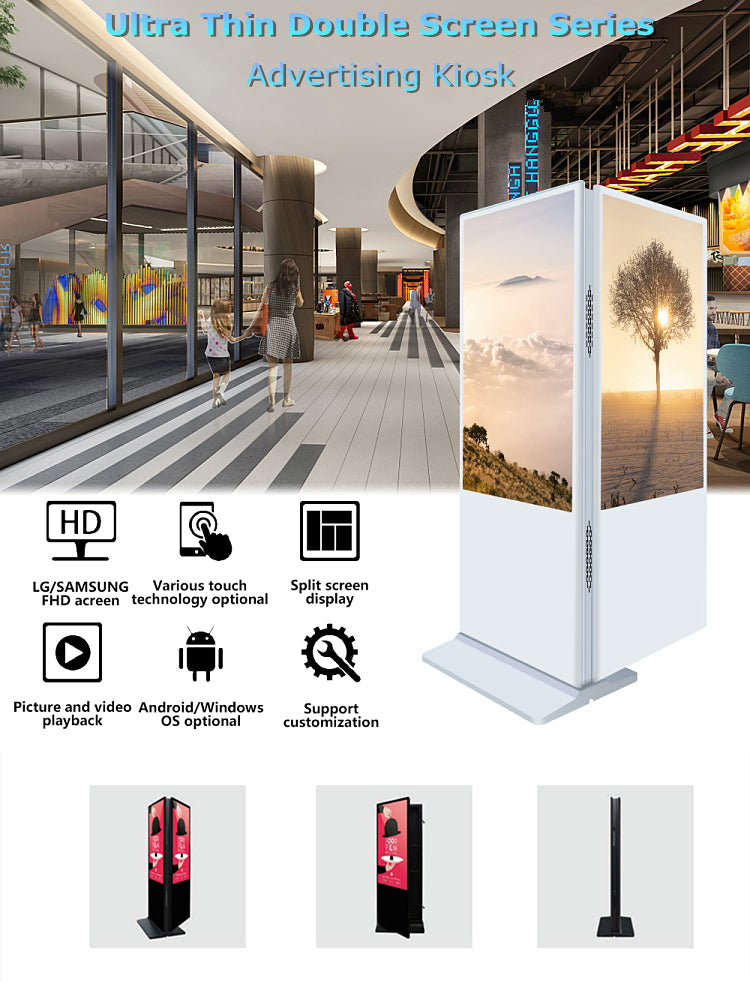

Ultra-Thin Double-Sided Floor‑Standing Digital Signage
Two directions. One display position.
A double-sided digital totem for retail aisles, lobbies and two-way visitor routes. This floor-standing digital signage unit brings two physical LCD screens into one ultra-thin cabinet, with optional touch and playback matched to each face.
DESIGNED FOR TWO VIEWING DIRECTIONS
One display position. A message on each side.
A double-sided digital signage totem gives approaching visitors a screen to read from either direction.

One position. Two viewing directions.
Place one screen toward arriving visitors and the other toward people approaching from the opposite side. The two-face format suits open aisles, reception areas and exhibition routes where a single-facing display leaves one approach unseen.
Two screens, with a content plan for each.
Use the two faces for the same campaign or discuss a separate message for each audience. Specify mirrored or independent content when requesting a quote so the player and signal arrangement support the intended workflow.
Advertising, information or an interactive application.
Choose non-touch for scheduled messaging or add touch for a visitor-facing application. Tell us which face needs touch and what software visitors will use.
Same content on both sides
Carry a consistent promotion across the two viewing directions.
Different content on each side
Brief us on the message for each face. The player and signal arrangement are matched to the required content workflow.
A SLIM CABINET. A COMPLETE SITE PLAN.
55-inch cabinet reference.
Plan the body size, then confirm the base footprint and service clearance for the installation.

| Cabinet height | 1,960 mm |
|---|---|
| Cabinet width | 747 mm |
| Cabinet body depth | 50 mm |
Use the selected-size base and installation drawing for the complete floor footprint and service clearance.
Side access for setup and service.
Reach the player and internal connections through the side-opening cabinet. Plan access to this side when positioning the display, so installation and service work can be carried out at the standing unit.
Watch the side-access demonstrationCabinet sizes at a glance
| Screen size | H × W × body depth |
|---|---|
| 43 inches | 1810 × 592 × 50 mm |
| 49 inches | 1860 × 683 × 50 mm |
| 55 inches | 1960 × 747 × 50 mm |
| 65 inches | 2000 × 868 × 50 mm |
Cabinet body references. The base footprint and service clearance are specified on the installation drawing. Request the matching drawing for 50- and 75-inch builds.
PUT BOTH VIEWING DIRECTIONS TO WORK
Made for spaces where people move both ways.
Choose the location around sightlines, walking routes and the message each audience needs.

Retail entrances and cross-aisles
Show offers to shoppers entering the store and a different call to action to visitors walking back toward the exit. Check both sightlines, aisle clearance and the power route.

Hotel lobbies and event foyers
Position arrival information toward reception traffic and event or venue information toward the return route. Schedule the relevant program for each time of day.

Showrooms and exhibitions
Present products to visitors approaching from either end of a display aisle. Include the transport method, assembly plan and storage requirements in the specification.

Corporate reception and shared spaces
Use one standing information point for visitor-facing messages and information along the internal circulation route. Define who controls updates and which content each audience should see.
Application visualizations.
CONFIGURED AROUND YOUR PROJECT
Choose the display. Shape the workflow.
Select the size, touch preference and playback system for your inquiry.
Project pricing & delivery
Minimum order: 1 unit. The single-unit retail price excludes shipping, import duties and local taxes. For other configurations or two or more displays, request a project or wholesale quote. Included accessories and delivery terms are confirmed in your written quotation.
Single-unit retail prices
These prices are for one display in the exact configuration listed below. Shipping, import duties and local taxes are excluded. Other configurations and orders of two or more units are quoted separately.
CONTENT MANAGEMENT
Keep every screen on the same content plan.
Permanent LAN and WAN CMS use is included with compatible Android LCD configurations.

Build a program that tells the whole story.
Combine image, video, text and clock regions in a multi-zone layout.
Put the right message on at the right time.
Plan campaigns by date, weekday and time period, with scheduled playback.
Keep screen groups on the same content plan.
Organize screens into groups and subgroups, then publish programs to the relevant locations.
See publishing progress and supported device settings.
Review task status and playback records, with supported brightness, volume, timer and restart controls.
- Wi-Fi or RJ45 Ethernet; compatible 4G hardware and SIM optional
- User roles and program review on supported deployments
- Local or remote workflows matched to your rollout
Functions depend on the controller, player and software version. Mobile data charges and service capacity are separate; Windows publishing software is specified by project.
TECHNICAL DETAILS
Compare the details that shape the build.
Product options and component references, organized for configuration planning.
Product configuration
| Product format | Double-sided floor-standing |
|---|---|
| Screen-size options | 43 / 49 / 50 / 55 / 65 / 75 inches |
| Screen layout | Dual Screen |
| Touch | Optional |
| Playback systems | Android / Windows / Standalone / Dual System |
| Dual-system choices | Android + Windows / Android + Linux |
| Application environment | Indoor |
| Cabinet reference, 55 inches | 1960 × 747 × 50 mm (H × W × body depth) |
Plan the complete installation
Plan both viewing directions, the base footprint, power entry and access to the side-opening cabinet. Specify the content arrangement for each face before selecting the player.
Screen configuration reference
| Native panel resolution | 3840 × 2160 (UHD) |
|---|---|
| Active area, native landscape (W × H) | 1209.6 × 680.4 mm |
| Panel mode | IPS · normally black, transmissive |
| Typical contrast | 1300:1 (typ.) |
| Viewing angle (L / R / U / D) | 89° / 89° / 89° / 89° (typ., CR ≥ 10) |
| Panel response time | 8 / 10 ms (Tr / Td, typ.) |
| Display colors | 1.07B (8-bit + Dithering) |
| Panel refresh rate | 60 Hz |
| Panel operating temperature | 0–50 °C |
Panel reference values; the ordered panel is selected with the configuration.
RK3566 · Android platform
| CPU | Quad-core 64-bit Cortex-A55 · up to 1.8 GHz |
|---|---|
| GPU | ARM Mali-G52 2EE |
| Operating system | Android 14 |
| RAM | 2 GB / 4 GB LPDDR4X |
| Onboard storage | 32 GB eMMC |
| Ethernet / wireless | 100 Mbps RJ45 · dual-band 2.4 / 5 GHz Wi-Fi |
| Board display interfaces | LVDS / eDP / MIPI-DSI / HDMI output |
| USB on the board | 1 × USB 3.0 host · 1 × USB 2.0 OTG · 5 expansion headers |
| Board power input | DC 12 V |
| Storage expansion | TF card up to 512 GB |
Available player reference; cabinet connections follow the selected build.
Electrical planning
| RK3566 / RK3576 board input | DC 12 V (internal board input) |
|---|---|
| Complete-display mains input | Specified for the selected display configuration |
| Rated display power | Specified with the selected size, panel, brightness and player |
PRODUCT VIEWS
A closer look at the form.
YOUR BRAND. YOUR WORKFLOW.
Make the display work for your project.
From a branded housing to a connected application, specify what the deployment needs.

Branding
Logo on the cabinet, packaging and manual. Custom boot images or animations.

Finish & Housing
RAL color matching and project-specific enclosure changes.

Screen Surface
AR, AG or anti-fingerprint film matched to the panel and optics.

Software
Pre-installation, default language, debugging and project-scoped SDK licensing.

Peripherals
Discuss cameras, microphones, QR scanners, NFC, printers and sensors.

Packaging
Carton or flight case, labels and destination-specific packing.
Customization feasibility, MOQ, engineering cost and timing are quoted against the requested scope.
FROM CONFIGURATION TO DEPLOYMENT
One team for the project details.
Coordinate the display, content workflow, documentation and service path.
Configuration & integration
Review the application, player, touch, peripherals and installation requirements together.
Branding & production
Specify the finish, logo, startup presentation and packing. Manufacturing covers sheet-metal work, display-module assembly, final assembly, inspection and packing.
Deployment & service
Prepare configuration documents, packing information, setup guidance and technical support around your rollout.
- Configuration review
- Agreed specification
- Production & inspection
- Packing & shipment
- Setup & service
DOCUMENTED FOR YOUR PROCUREMENT REVIEW
Certifications & Compliance
Product compliance, certified management systems and SGS supplier assessments.
Product Compliance
Management Systems
SGS Supplier Assessment
SGS — Gemdragon supplier assessment
491201445_T
Gemdragon trade assessment · 2026
View document detailsSGS — Manufacturing partner assessment
494211001_P+T
Manufacturing partner production and trading assessment · 2026
View document detailsPRODUCT & PRODUCTION
See both faces. See the access.
Double-sided cabinet & side access
Original 43-inch product footage · 24-second excerpt · silent
Display-module assembly
Company production footage · modular backlight assembly excerpt · silent
BEFORE YOU SPECIFY
Answers for your project.
Is this a double-sided display or a split-screen layout?
It has two physical LCD screens, one on each face of the freestanding unit. Split-screen content is a separate software feature that divides one screen into several content regions.
What sizes are available?
Choose 43, 49, 50, 55, 65 or 75 inches. These are the options for this double-sided style.
Can the two sides show different content?
Tell us whether you need identical content, different content or coordinated timing on the two faces. The player, software and signal arrangement are specified around that requirement.
Can I order a 55-inch double-sided digital totem?
Yes. The 55-inch configuration has two physical viewing faces. Its supplied cabinet reference is 1,960 mm high, 747 mm wide and 50 mm deep at the cabinet body. Use the matching base and installation drawing to plan the footprint and content routing.
Can the two viewing faces support interaction or remote updates?
For double-sided digital signage with a touch option, tell us which face will be interactive and what application it will run. Double-sided digital signage with remote CMS publishing uses the matched player and software; the compatible Android LCD configuration includes permanent LAN and WAN CMS use.
Does the cabinet reference include the base footprint?
The stated 50 mm depth describes the cabinet body. Allow for the base and service access using the complete installation drawing for your chosen size.
Is this the same product as the single-screen ultra-thin stand?
No. This style has two physical viewing faces. Compare the screen arrangement, cabinet drawing and content routing when choosing between the single-screen and double-sided products.
Is touch available on this double-sided kiosk?
Touch is optional. Specify which face needs touch, the application and the way visitors will use it so the touch and player configuration can be matched to the task.
Which operating systems can I choose?
Android, Windows and standalone playback are available, together with dual-system options using Android + Windows or Android + Linux.
Can I run my own software?
We can review your software requirements and discuss installation on the selected system. Share the operating system, application requirements and any peripheral connections; software compatibility is reviewed with the hardware configuration.
How do I choose the playback system?
Start with your software, content formats and update method. Select Android, Windows, standalone or dual system, and tell us whether you will use your own software or APK. We will match the player to those requirements.
Is a CMS included with the Android configuration?
Permanent LAN and WAN CMS use is included with the specified compatible Android LCD configuration. Windows publishing software is selected separately for the project.
What can the content management workflow do?
Supported Android deployments can combine video, images, text and clocks in multi-zone programs, schedule playback, organize screen groups and publish updates remotely. The available controls follow the player and software version.
Does remote publishing require a 4G SIM?
No. Wi-Fi or RJ45 Ethernet can provide connectivity. Compatible 4G hardware and a SIM are optional where a mobile connection is needed; data and network-service charges are separate.
Can I update displays in several stores?
The supported Android workflow includes screen groups and remote program publishing. Share the number of sites, available networks and publishing responsibilities so the management setup can be matched to your rollout.
Can I use a local USB playback workflow?
Standalone playback is an available option. Include your media formats, program layout and update method in the inquiry so the player can be selected accordingly.
Is the double-sided stand suitable for outdoor use?
This style is intended for indoor installations. Use the outdoor digital signage range for projects requiring an outdoor enclosure and the associated environmental specification.
Can you add our branding or change the cabinet finish?
Yes. Discuss the cabinet logo, finish, startup presentation, packaging and software deployment. Project-specific peripherals and enclosure changes can also be reviewed.
Which compliance documents can you provide?
CE, FCC, RoHS, EMC, LVD and RED product documentation is available. Company credentials include ISO 9001, ISO 45001 and SGS supplier assessments. Request the documents for your procurement review.
What affects the price of a double-sided digital signage stand?
Screen size, panel specification, touch requirements, playback system, content arrangement, customization, quantity and destination affect the quotation. Include the requirements you know; you do not need to select a CPU first.
Can you support sample evaluation and a later rollout?
Share the intended evaluation scope, expected quantity and destination. Our team can review the configuration, documentation, packing, setup and service requirements with you. Sample terms, delivery timing and warranty are set out in the quotation and order documents.
What should I include in an inquiry?
Provide the preferred size, application, quantity, destination and system, plus whether you will use your own software. For this two-screen product, also describe what you want each face to show.
Does Request a Quote place an order?
No. It sends a project inquiry for the Ultra-Thin Double-Sided Floor-Standing Digital Signage. We review your requirements and provide a written quotation before you decide whether to place an order.
Does a displayed unit price include freight and customization?
Displayed prices apply to the listed store reference configurations. The written project quotation confirms the selected build, quantity, customization, freight, taxes or duties, delivery schedule and any project services.
Why are some available sizes missing from the reference price table?
The project size selection includes 43, 49, 50, 55, 65, 75 inches. A reference price table shows only existing store configurations and is not the full availability list. Request the quotation for your selected size and options.
LET’S DEFINE THE RIGHT DISPLAY
Tell us what you’re planning.
Share the application, size, quantity and software you have in mind.
