K-shaped information kiosk with an angled landscape screen in a reception lobby, application visualization

INDOOR INFORMATION KIOSK · LANDSCAPE

Angled Touch Screen Information Kiosk

Help visitors find their next step.

An angled touch screen kiosk for reception, visitor information and customer browsing. The landscape floor-standing digital signage format brings content into an approachable touch position, with the system and application selected for the interaction.

Explore the Features
18Screen-size options
TouchOptional interaction
K-shapedFloor-standing support
Application visualization

INFORMATION, WITH A HUMAN POINT OF VIEW

Approach. Explore. Find the answer.

An angled landscape screen for the moments when visitors need more than a poster.

Landscape touch screen information kiosk used for a shopping mall directory, application visualization
Shopping mall application visualization.

Make finding information feel direct.

Present a shopping directory, collection browser or visitor application on a screen angled toward the user. The landscape format gives maps, categories and product information room to sit side by side.

Touch that fits the application.

A 10-point capacitive-touch option supports interactive browsing. Select the touch assembly with the screen size and software; choose non-touch when the project only needs a presentation or information display.

Hardware around your software.

Choose Android, Windows, standalone or dual system. Share your own application or APK, required operating-system version, memory, storage and peripheral needs so the player can be specified around the workflow.

A VIEW OF THE COMPLETE KIOSK

The screen angle is only part of the plan.

Angled information kiosk front, side and rear cabinet views, product visualization
Front, side and rear cabinet visualization.

Inclined display. K-shaped support. Floor base.

The landscape screen provides room for a map, categories and content. Review the cabinet, base and user approach as one installation.

Screen options18 listed sizes · 15 to 98 inches
Display layoutOne physical landscape LCD screen
InteractionOptional touch; match reach and operating height
Installation planningWidth, height, base depth, tilt and cable access

Choose the size around the task.

Send a floor plan, site photo or interface example. We can review the selected-size drawing, approach area, readable content size and connection path with your team.

GUIDED DISCOVERY IN PUBLIC SPACES

Help people navigate the place and the content.

Landscape touch screen information kiosk used for a shopping mall directory, application visualization

Shopping mall wayfinding

Help visitors browse stores and locate their next stop through a project-selected directory application. Plan the map, language, search and update workflow with your software team.

Tilted touch screen kiosk presenting a museum information interface, application visualization

Museum & exhibit information

Let visitors explore collection information, artwork details and route suggestions on an angled screen. Coordinate the content depth and interface with the exhibition experience.

K-shaped information kiosk with an angled landscape screen in a reception lobby, application visualization

Reception & visitor services

Provide company, hotel or venue information at the point of arrival. Match the application, interaction height and approach space to the reception area.

Application visualizations; directory and visitor interfaces are examples of project-selected software.

CONFIGURED AROUND YOUR PROJECT

Choose the display. Shape the workflow.

Select the size, touch preference and playback system for your inquiry.

Choose screen size — 18 options
Screen size

Project pricing & delivery

Minimum order: 1 unit. For two or more displays, request a project or wholesale quote. Configuration, customization, freight, taxes and delivery are confirmed in your written quotation.

Shipping & lead times · Returns & warranty

Single-unit retail prices

These prices are for one display in the exact configuration listed below. Other configurations and orders of two or more units are quoted separately. Freight, taxes and duties are confirmed for the destination.

Priced configurationPrice
32 inch / Without Touch Function / Stand-alone$286.80 USD
32 inch / Without Touch Function / Android$346.80 USD
32 inch / Without Touch Function / Windows$436.80 USD
32 inch / With Touch Function / Stand-alone$351.60 USD
32 inch / With Touch Function / Android$411.60 USD
32 inch / With Touch Function / Windows$501.60 USD
43 inch / Without Touch Function / Stand-alone$352.80 USD
43 inch / Without Touch Function / Android$412.80 USD
43 inch / Without Touch Function / Windows$502.80 USD
43 inch / With Touch Function / Stand-alone$426.00 USD
43 inch / With Touch Function / Android$486.00 USD
43 inch / With Touch Function / Windows$576.00 USD
49 inch / Without Touch Function / Stand-alone$487.20 USD
49 inch / Without Touch Function / Android$547.20 USD
49 inch / Without Touch Function / Windows$637.20 USD
49 inch / With Touch Function / Stand-alone$534.00 USD
49 inch / With Touch Function / Android$594.00 USD
49 inch / With Touch Function / Windows$684.00 USD
55 inch / Without Touch Function / Stand-alone$489.60 USD
55 inch / Without Touch Function / Android$549.60 USD
55 inch / Without Touch Function / Windows$639.60 USD
55 inch / With Touch Function / Stand-alone$560.40 USD
55 inch / With Touch Function / Android$620.40 USD
55 inch / With Touch Function / Windows$710.40 USD
65 inch / Without Touch Function / Stand-alone$648.00 USD
65 inch / Without Touch Function / Android$708.00 USD
65 inch / Without Touch Function / Windows$798.00 USD
65 inch / With Touch Function / Stand-alone$732.00 USD
65 inch / With Touch Function / Android$792.00 USD
65 inch / With Touch Function / Windows$882.00 USD
75 inch / Without Touch Function / Stand-alone$887.20 USD
75 inch / Without Touch Function / Android$937.20 USD
75 inch / Without Touch Function / Windows$1,027.20 USD
75 inch / With Touch Function / Stand-alone$918.00 USD
75 inch / With Touch Function / Android$978.00 USD
75 inch / With Touch Function / Windows$1,068.00 USD
86 inch / Without Touch Function / Stand-alone$1,090.80 USD
86 inch / Without Touch Function / Android$1,150.80 USD
86 inch / Without Touch Function / Windows$1,240.80 USD
86 inch / With Touch Function / Stand-alone$1,152.00 USD
86 inch / With Touch Function / Android$1,212.00 USD
86 inch / With Touch Function / Windows$1,302.00 USD

CONTENT MANAGEMENT

Keep every screen on the same content plan.

Permanent LAN and WAN CMS use is included with compatible Android LCD configurations.

Conceptual content-management workspace with a laptop and portrait display
Conceptual workflow illustration.
01

Build a program that tells the whole story.

Combine image, video, text and clock regions in a multi-zone layout.

  • Wi-Fi or RJ45 Ethernet; compatible 4G hardware and SIM optional
  • User roles and program review on supported deployments
  • Local or remote workflows matched to your rollout

Functions depend on the controller, player and software version. Mobile data charges and service capacity are separate; Windows publishing software is specified by project.

TECHNICAL DETAILS

Compare the details that shape the build.

Product options and component references, organized for configuration planning.

Product configuration

Product formatAngled information kiosk
Screen-size options15 / 15.6 / 17 / 18.5 / 19 / 21.5 / 22 / 23.6 / 27 / 32 / 43 / 49 / 55 / 65 / 75 / 85 / 86 / 98 inches
Screen layoutSingle Screen
TouchOptional
Playback systemsAndroid / Windows / Standalone / Dual System
Dual-system choicesAndroid + Windows / Android + Linux
Application environmentIndoor
Display positionAngled landscape display on K-shaped support and floor base
Touch assembly option10-point PCAP; assembly matched to size and application
Application softwareCustomer application or project-selected software
Network optionsWi-Fi / RJ45 Ethernet; compatible 4G hardware and SIM optional

Plan the interaction, then the installation.

Review the overall cabinet and base dimensions, screen height and tilt, touch reach, approach clearance and access to power/data. Specify the user groups and site constraints before finalizing the selected-size drawing.

Screen configuration reference

Native panel resolution3840 × 2160 (UHD)
Active area, native landscape (W × H)1209.6 × 680.4 mm
Panel modeIPS · normally black, transmissive
Typical contrast1300:1 (typ.)
Viewing angle (L / R / U / D)89° / 89° / 89° / 89° (typ., CR ≥ 10)
Panel response time8 / 10 ms (Tr / Td, typ.)
Display colors1.07B (8-bit + Dithering)
Panel refresh rate60 Hz
Panel operating temperature0–50 °C

Panel reference values; the ordered panel is selected with the configuration.

RK3566 · Android platform

CPUQuad-core 64-bit Cortex-A55 · up to 1.8 GHz
GPUARM Mali-G52 2EE
Operating systemAndroid 14
RAM2 GB / 4 GB LPDDR4X
Onboard storage32 GB eMMC
Ethernet / wireless100 Mbps RJ45 · dual-band 2.4 / 5 GHz Wi-Fi
Board display interfacesLVDS / eDP / MIPI-DSI / HDMI output
USB on the board1 × USB 3.0 host · 1 × USB 2.0 OTG · 5 expansion headers
Board power inputDC 12 V
Storage expansionTF card up to 512 GB

Available player reference; cabinet connections follow the selected build.

Electrical planning

RK3566 / RK3576 board inputDC 12 V (internal board input)
Complete-display mains inputSpecified for the selected display configuration
Rated display powerSpecified with the selected size, panel, brightness and player

YOUR BRAND. YOUR WORKFLOW.

Make the display work for your project.

From a branded housing to a connected application, specify what the deployment needs.

brand customization option illustration

Branding

Logo on the cabinet, packaging and manual. Custom boot images or animations.

finish customization option illustration

Finish & Housing

RAL color matching and project-specific enclosure changes.

surface customization option illustration

Screen Surface

AR, AG or anti-fingerprint film matched to the panel and optics.

software customization option illustration

Software

Pre-installation, default language, debugging and project-scoped SDK licensing.

peripheral customization option illustration

Peripherals

Discuss cameras, microphones, QR scanners, NFC, printers and sensors.

pack customization option illustration

Packaging

Carton or flight case, labels and destination-specific packing.

Customization feasibility, MOQ, engineering cost and timing are quoted against the requested scope.

FROM CONFIGURATION TO DEPLOYMENT

One team for the project details.

Coordinate the display, content workflow, documentation and service path.

Configuration & integration

Review the application, player, touch, peripherals and installation requirements together.

Branding & production

Specify the finish, logo, startup presentation and packing. Manufacturing covers sheet-metal work, display-module assembly, final assembly, inspection and packing.

Deployment & service

Prepare configuration documents, packing information, setup guidance and technical support around your rollout.

  1. Configuration review
  2. Agreed specification
  3. Production & inspection
  4. Packing & shipment
  5. Setup & service

DOCUMENTED FOR YOUR PROCUREMENT REVIEW

Certifications & Compliance

Product compliance, certified management systems and SGS supplier assessments.

Product Compliance

CEFCCRoHSEMCLVDRED

EMC / CE

CCTI-2025120418C

Shenzhen CCTI Technology Co., Ltd.

View compliance details

LVD / CE

CCTI-2025120419C

Shenzhen CCTI Technology Co., Ltd.

View compliance details

FCC

CCTI-2025120421C

Shenzhen CCTI Technology Co., Ltd.

View compliance details

RoHS

CCTI-2025120420C

Shenzhen CCTI Technology Co., Ltd.

View compliance details

RED

CCTI-2025121902C

Shenzhen CCTI Technology Co., Ltd.

View compliance details

Management Systems

ISO 9001 — Quality management

134726Q00054R010

R&D and sales activities

View document details

ISO 45001 — Occupational health and safety

10139529S

R&D and sales activities

View document details

SGS Supplier Assessment

SGS — Gemdragon supplier assessment

491201445_T

Gemdragon trade assessment · 2026

View document details

SGS — Manufacturing partner assessment

494211001_P+T

Manufacturing partner production and trading assessment · 2026

View document details

PRODUCT & PRODUCTION

See the touch interaction in action.

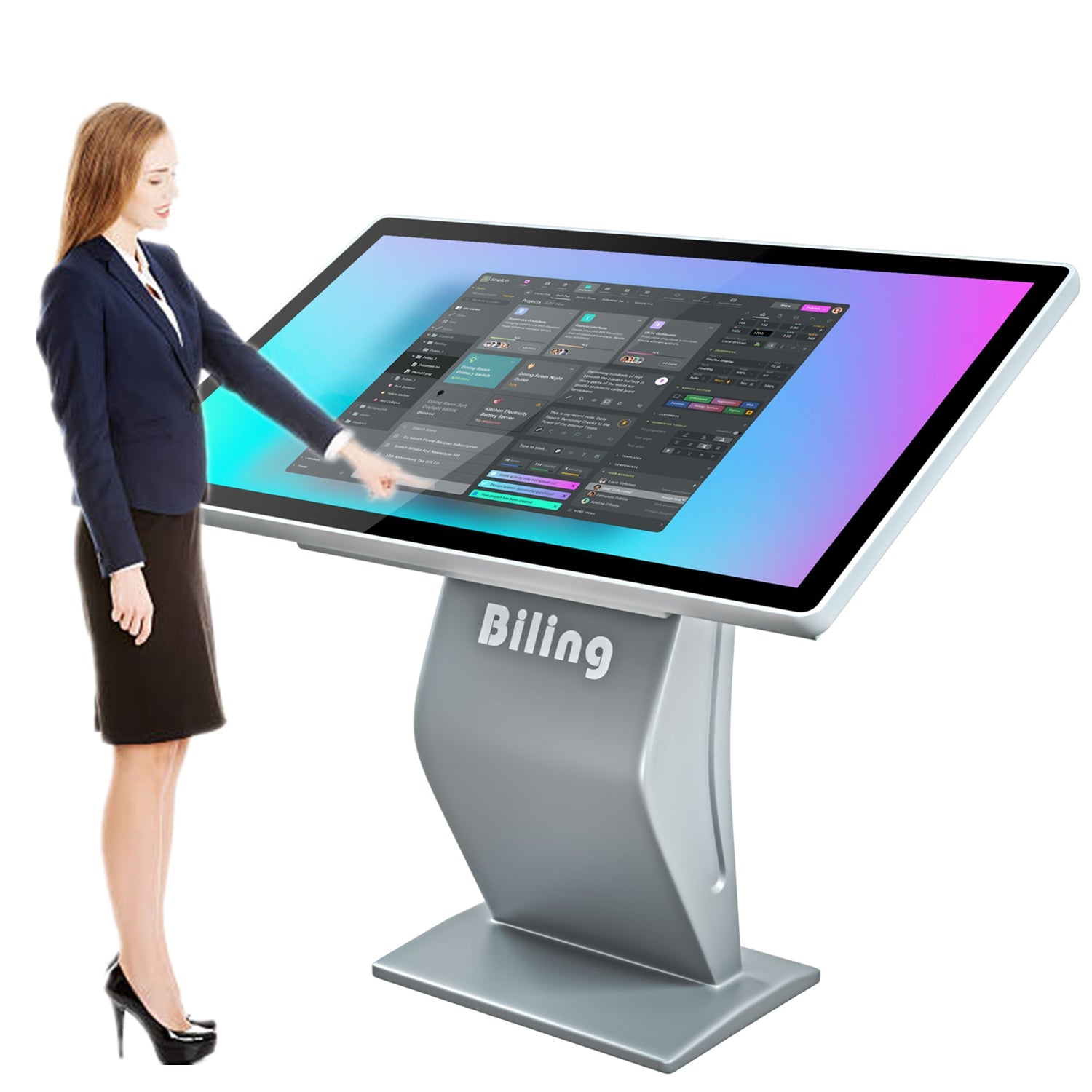

Touch interaction on an angled kiosk

Original product footage · cabinet and touch interaction · 26-second excerpt · silent

Display-module assembly

Company production footage · modular backlight assembly excerpt · silent

BEFORE YOU SPECIFY

Answers for your project.

What type of kiosk is this?

It is an indoor landscape information kiosk with an inclined screen, K-shaped support and floor base. Configure it for interactive information, directory or product-selection applications, or choose non-touch playback for presentation.

Which screen sizes are available?

The listed sizes are 15, 15.6, 17, 18.5, 19, 21.5, 22, 23.6, 27, 32, 43, 49, 55, 65, 75, 85, 86 and 98 inches. Cabinet and support dimensions are matched to the selected display assembly.

Is the touch screen included by default?

Touch is optional. Choose a touch-enabled configuration for interaction or non-touch for presentation. A 10-point PCAP option is described in the product materials; the touch assembly is selected with the size and application.

Does the kiosk include a shopping directory or wayfinding application?

The kiosk hardware is configured around the application you plan to use. Share your directory software, browser-based workflow or integration requirements. Application development, licensing and content are discussed with the project.

Can this replace a portrait advertising stand at an information point?

Choose a landscape floor-standing touch screen display when visitors need to read, browse or interact at an inclined surface. This is indoor touchscreen wayfinding kiosk hardware; maps, directories and other customer applications are specified separately.

Can we supply our own information application?

Yes. Specify an Android information kiosk with a custom application or discuss another supported system. For a touch screen kiosk for visitor information, share the user journey, application requirements, network and any peripherals.

Is a 55-inch angled digital signage kiosk available?

Yes. Include 55 inches in the inquiry, or choose another listed screen size. The application layout, reach, pedestal footprint and service access should be reviewed together before ordering the complete interactive display.

Can it run our own Android APK?

Choose Yes under own software or APK and share the application, Android-version requirements, network needs and peripherals. We will review the player, memory, storage and installation workflow with you.

Can it run a Windows information system?

Windows configurations are available. Send the software requirements, driver needs, peripheral connections and expected workload so the processor, RAM and SSD can be specified.

What dual-system combinations are available?

Choose Android + Windows or Android + Linux as the starting system pairing. Describe which applications must run and how the systems should be used so the hardware and switching arrangement can be planned.

Can it display advertising as well as visitor information?

Yes, with the selected playback software. Compatible Android configurations support remote CMS publishing, program schedules and multi-zone media. The interactive application and any idle-time advertising behavior are planned together.

What can the Android CMS manage?

The compatible Android CMS supports image, video, text and clock regions, scheduled programs, screen groups and remote publishing. Supported deployments also provide task status, playback records and device settings.

Is an annual CMS renewal required?

Permanent LAN and WAN CMS use is included with compatible Android LCD configurations. Network connectivity and mobile-data service are arranged separately. Windows publishing software is specified as part of the project.

Do we need a 4G connection?

No. Wi-Fi or RJ45 Ethernet can provide connectivity. Compatible 4G hardware and a SIM are optional for sites where a wired or Wi-Fi connection is unsuitable.

Can you integrate a scanner, camera or card reader?

Peripheral customization is available for project review. Share the device, connection, driver, software and mounting requirements so physical integration and compatibility can be assessed.

Can the kiosk take payments or print tickets?

A transaction or ticketing workflow requires suitable peripherals, application software, provider integration and destination-market requirements. Describe the complete workflow for a project-specific configuration review.

How should we plan accessibility?

Review the operating height, reach range, clear approach area, text size, glare and application interaction for the intended users. Use the selected cabinet drawing and the project’s accessibility requirements when planning the installation.

Can the screen tilt be adjusted?

Specify the required angle and user position with your inquiry. The product uses an inclined screen; any adjustment mechanism or project-specific angle must be included in the agreed cabinet configuration.

Is the screen protected by glass?

Tempered protective glass and optical-bonding options are described in the product materials. Discuss the glass, touch assembly, surface treatment and optical requirements together for the selected size.

What resolution and brightness should we choose?

Consider the interface layout, viewing distance and site lighting. Use the screen reference table to review the documented panel options, then specify the installed panel and brightness with the complete configuration.

Is this kiosk suitable for outdoor use?

This product is for indoor information and interaction points. For an exposed site, choose an outdoor kiosk or display configured for the light, weather and operating conditions.

Can you customize the cabinet color and branding?

Yes. Discuss cabinet finish, logo, startup screen, software pre-installation, surface treatment, peripherals and packaging. Include the site appearance and integration requirements early in the project.

Which documents support procurement?

The floor-standing LCD product records include EMC/CE, LVD/CE, FCC, RoHS and RED documentation. ISO 9001 and ISO 45001 cover the stated management-system activities. SGS assessments cover Gemdragon and its manufacturing partner separately; request the document set for your selected configuration and destination.

What should we send for a quotation?

Send the size, quantity, destination, application, touch preference and operating system. Confirm whether you use your own software or APK, and include peripheral, operating-height, installation, branding and timing requirements.

Does Request a Quote place an order?

No. It sends a project inquiry for the Angled Touch Screen Information Kiosk. We review your requirements and provide a written quotation before you decide whether to place an order.

Does a displayed unit price include freight and customization?

Displayed prices apply to the listed store reference configurations. The written project quotation confirms the selected build, quantity, customization, freight, taxes or duties, delivery schedule and any project services.

Why are some available sizes missing from the reference price table?

The project size selection includes 15, 15.6, 17, 18.5, 19, 21.5, 22, 23.6, 27, 32, 43, 49, 55, 65, 75, 85, 86, 98 inches. A reference price table shows only existing store configurations and is not the full availability list. Request the quotation for your selected size and options.

LET’S DEFINE THE RIGHT DISPLAY

Tell us what you’re planning.

Share the application, size, quantity and software you have in mind.

Andy@gemdragondisplay.com

GEMDRAGON PROJECT INQUIRY

Tell us what you’re planning.

Share the details you know — we can help review the configuration.

Paste your configuration into the inquiry message.

Request a Quote

Form unavailable? Request a Quote or email our team. Privacy policy

K-shaped information kiosk with an angled landscape screen in a reception lobby, application visualization
