Super Thin Floor Standing Digital Signage Kiosk Stand-alone System | Commercial Displays and Screens
Super Thin Floor Standing Digital Signage Kiosk Stand-alone System | Commercial Displays and Screens
Specification
Support OEM / ODM Infrared TOUCH ( optional ),
Thickness :3cm(or 2cm)
32 / 43 / 49 / 55 / 65 / 75 inch Screen can support
Stand-alone / Android / windows version optional

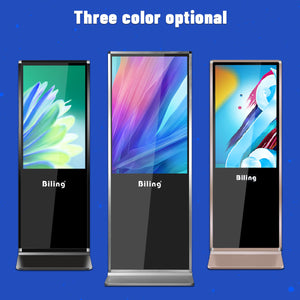

black , gold , silver ( optional )

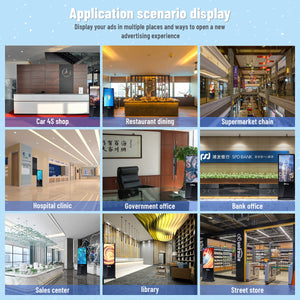

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
Hot selling Kiosk advertising players
Wide View Kiosk Digital Signage
|
Screen configuration
|
|
|
Screen size
|
32" (43 / 49 / 55 / 65 / 75 / 86 / 98 / 100 inch Screen can support)
|
|
Resolution
|
1920 (RGB) × 1080 [FHD] / 2K / 4K UHD
|
|
Display size
|
941.184 × 529.416 mm (H × V)
|
|
Visual size
|
945.18 × 533.42 mm (H × V)
|
|
Brightness (cd/m2)
|
300 - 450 (Typ.) (Please contact us for higher brightness requirements)
|
|
Best angle
|
full view
|
|
Viewing angle
|
89/89/89/89 (Min.) (CR ≥ 10)
|
|
Pitch
|
0.227mm (H) x 0.227mm (W)
|
|
Number of colors
|
16.7M/1.07B, 95% [CIE1931]
|
|
Screen weight
|
6.30Kgs (Typ./Max.)
|
|
Refresh rate
|
60Hz
|
|
Signal system
|
LVDS (2 ch, 10-bit), terminal, 51 pins
|
|
Supply voltage
|
12.0V (Typ.)
|
|
Maximum rating
|
Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
|
|
Screen type
|
LCD module, a-Si TFT-LCD.
|
|
Pixel configuration
|
RGB vertical strip
|
|
Appearance size
|
975.5 × 582.2 × 10.5 (H × V × D)
|
|
Surface treatment
|
matte (Haze 3%), Hard coating (1H)
|
|
Contrast ratio
|
1100 : 1 (Typ.) [Transmission]
|
|
Optical mode
|
IPS, normally black display, transmissive
|
|
Response speed
|
6 (Typ.) (G to G) ms
|
|
Backlight type
|
WLED, 30K hours, no drive
|
|
Infrared touch (option)
|
|
|
Material
|
Glass thickness
|
|
Surface abrasion strength
|
strong, determined by the glass surface
|
|
Homogeneity
|
good
|
|
Touch the parameter
|
|
|
The number of times the theory is determined by the degree of glass wear
|
|
|
Design life
|
more than 5 years
|
|
Touch the fastest response speed
|
6ms
|
|
Touch the average reaction speed
|
8ms
|
|
Electrical parameters
|
|
|
Working voltage
|
4.5 ~ 5.5Vdc
|
|
Working current
|
≤120mA
|
|
Power
|
≤ 900mW
|
Indoor Network Digital Signage And Display
| Screen Size |
32 inch, 43 inch, 49 inch, 55 inch, 65 inch, 75 inch, 85 inch, 86 inch |
|---|---|
| Touch Function |
Without Touch Function, With Touch Function |
