Gemdragon 32-86Inch High Brightness LCD Digital Window Display for Retail Storefront Signage

Gemdragon 32-86Inch High Brightness LCD Digital Window Display for Retail Storefront Signage

$400.00

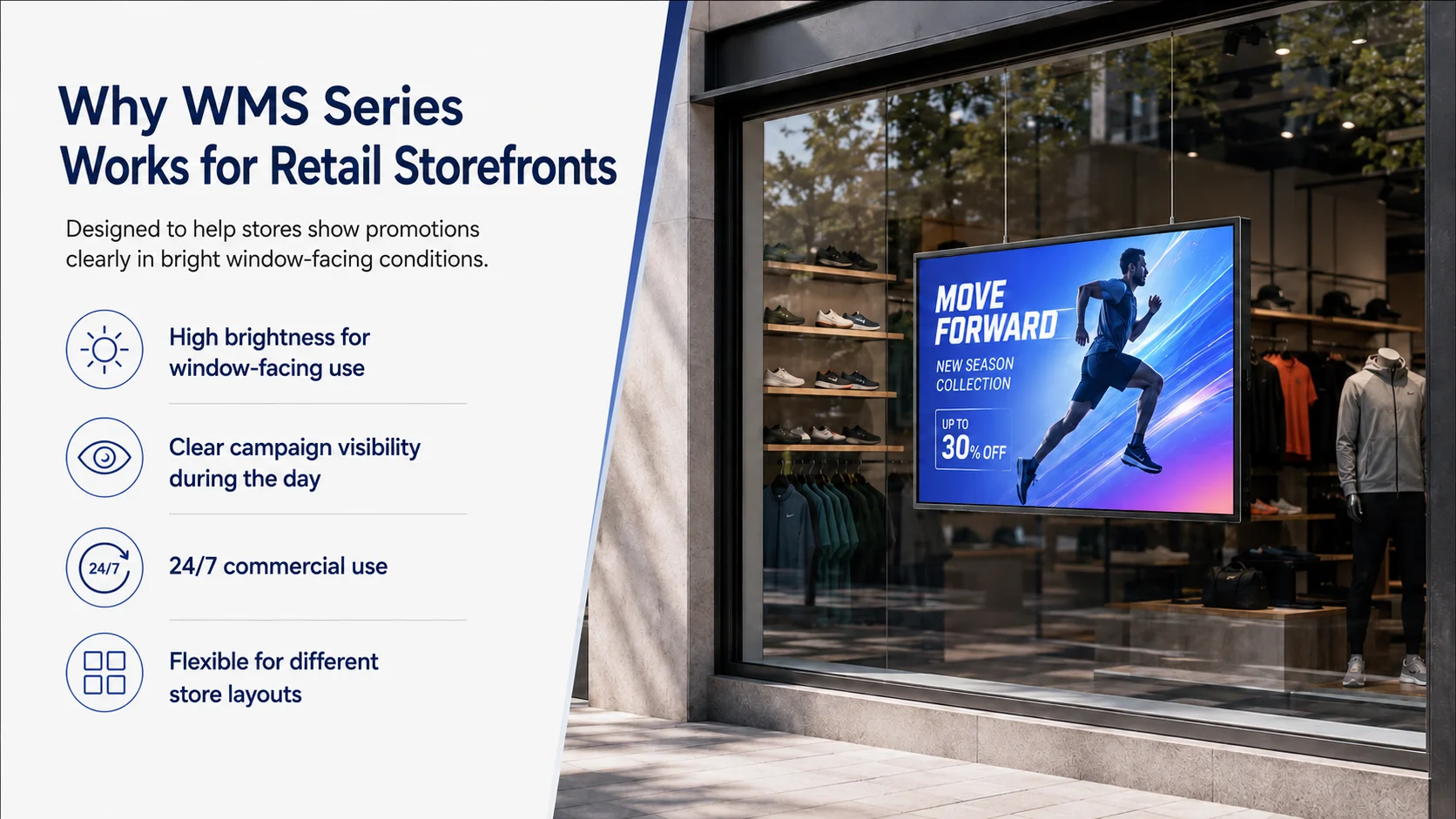

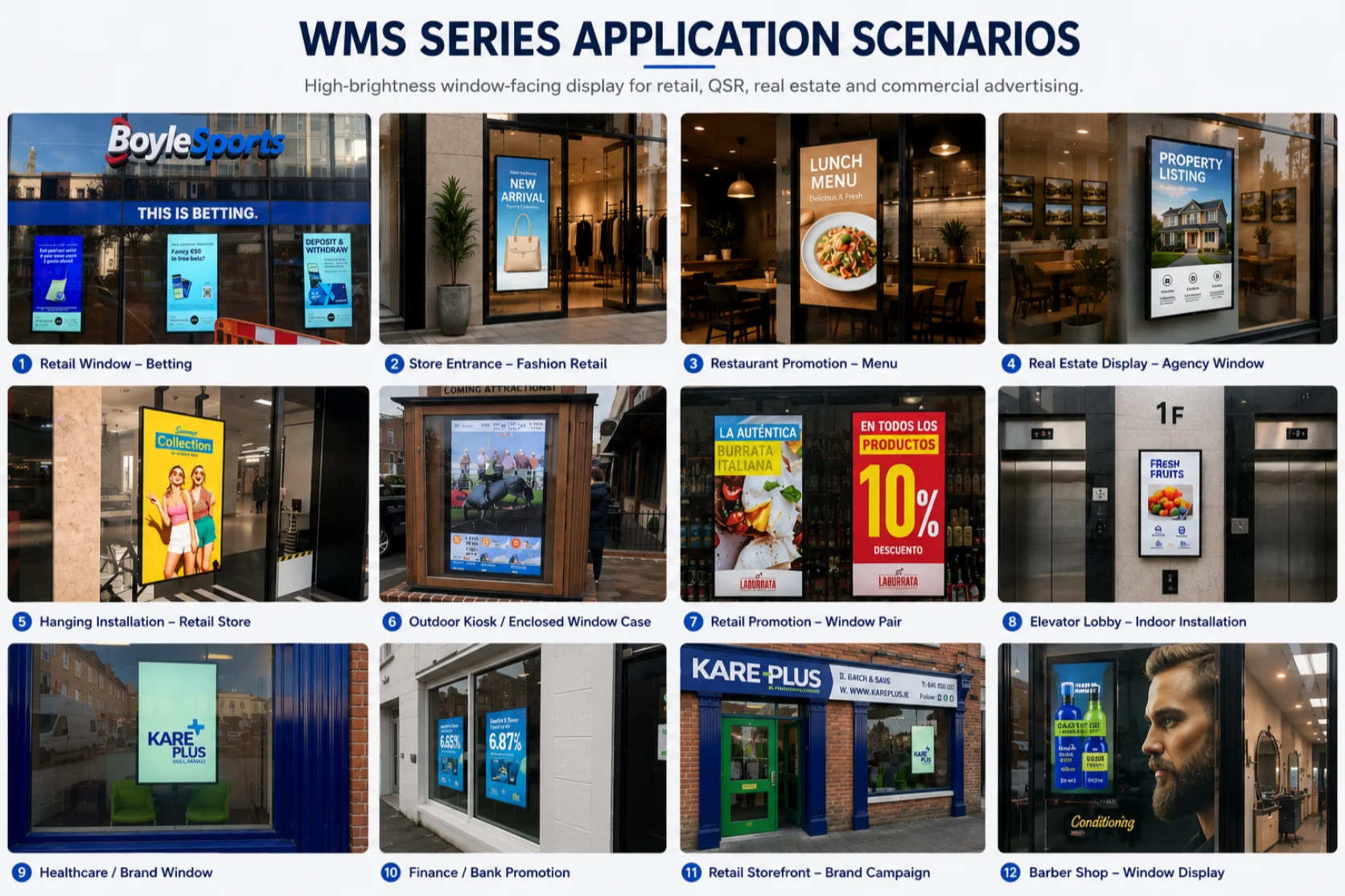

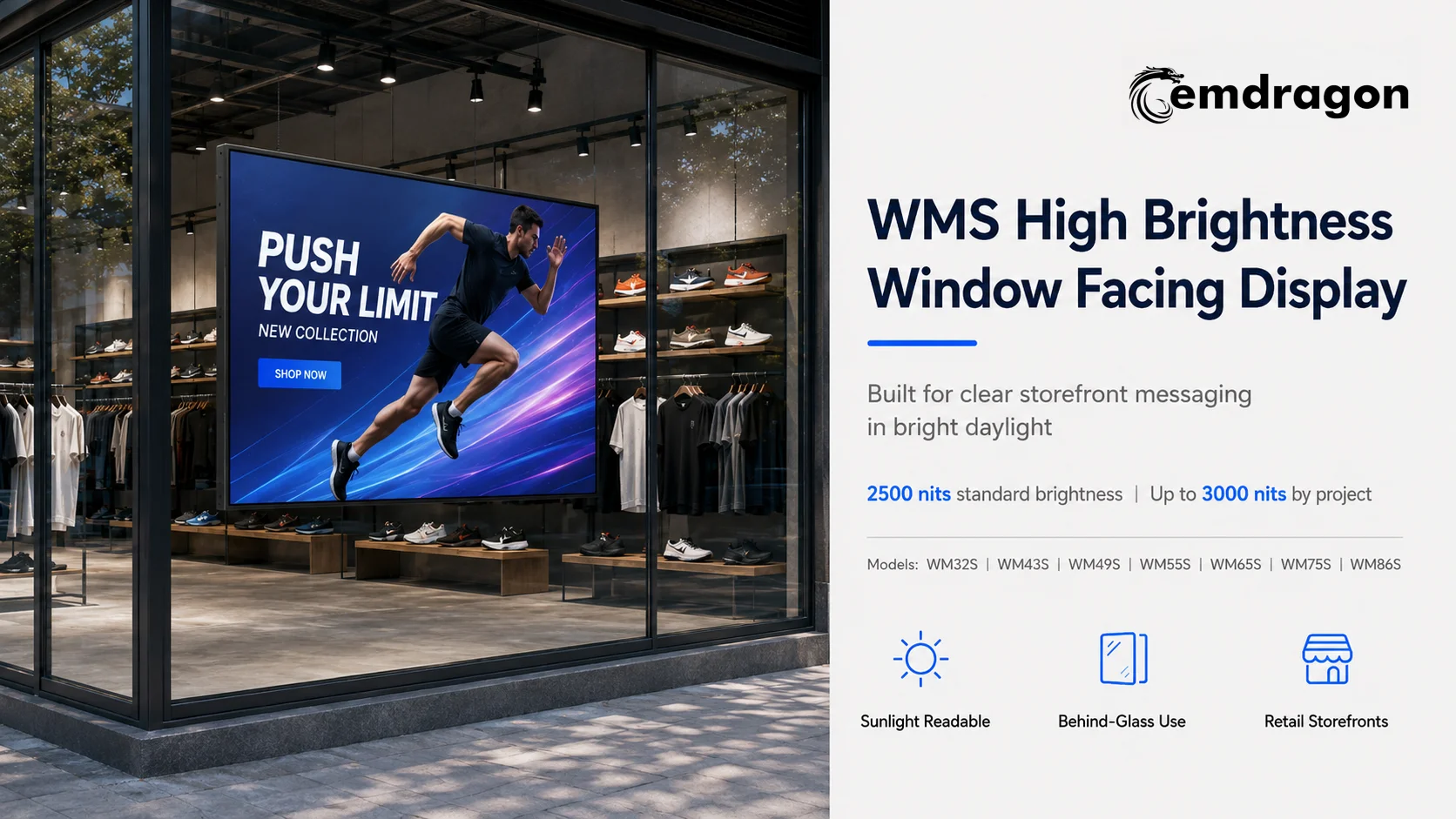

LCD Digital Window Display for Storefronts: WD-S3 is a commercial LCD digital signage series for behind-glass retail storefronts, shop windows, QSR windows, real estate offices, boutiques, shopping mall storefronts, and chain-store rollout projects.

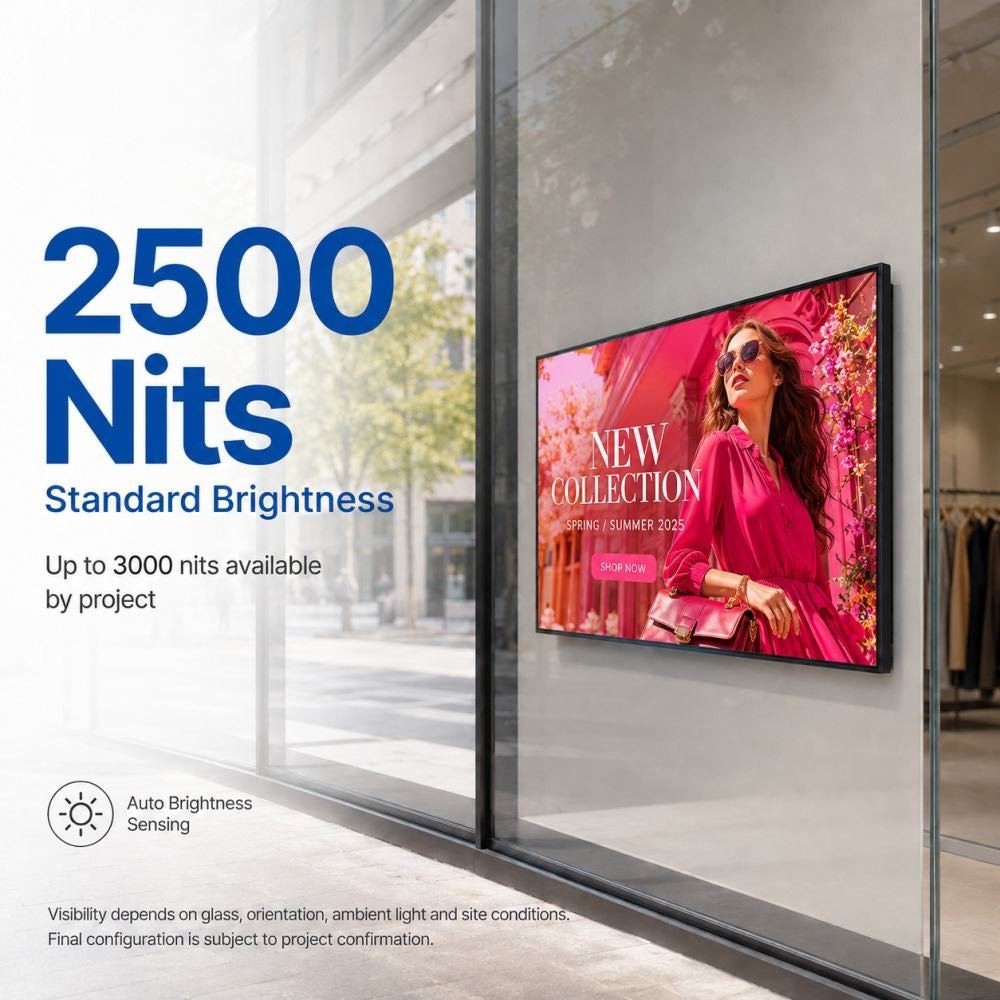

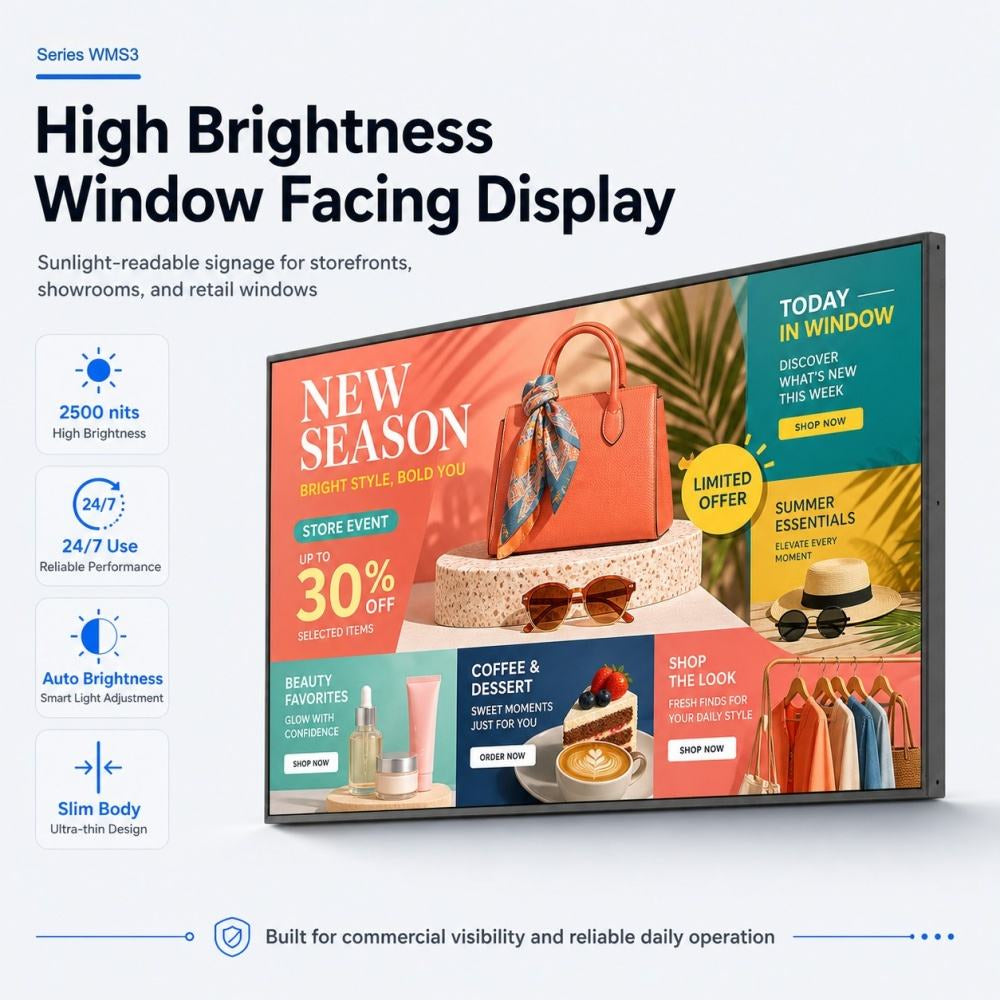

High Brightness Window Display: 2500 nits standard brightness with automatic light sensing helps storefront content stay readable in high-ambient-light retail windows. Up to 3000 nits is a project option after panel, power, thermal, MOQ, price, and lead-time confirmation.

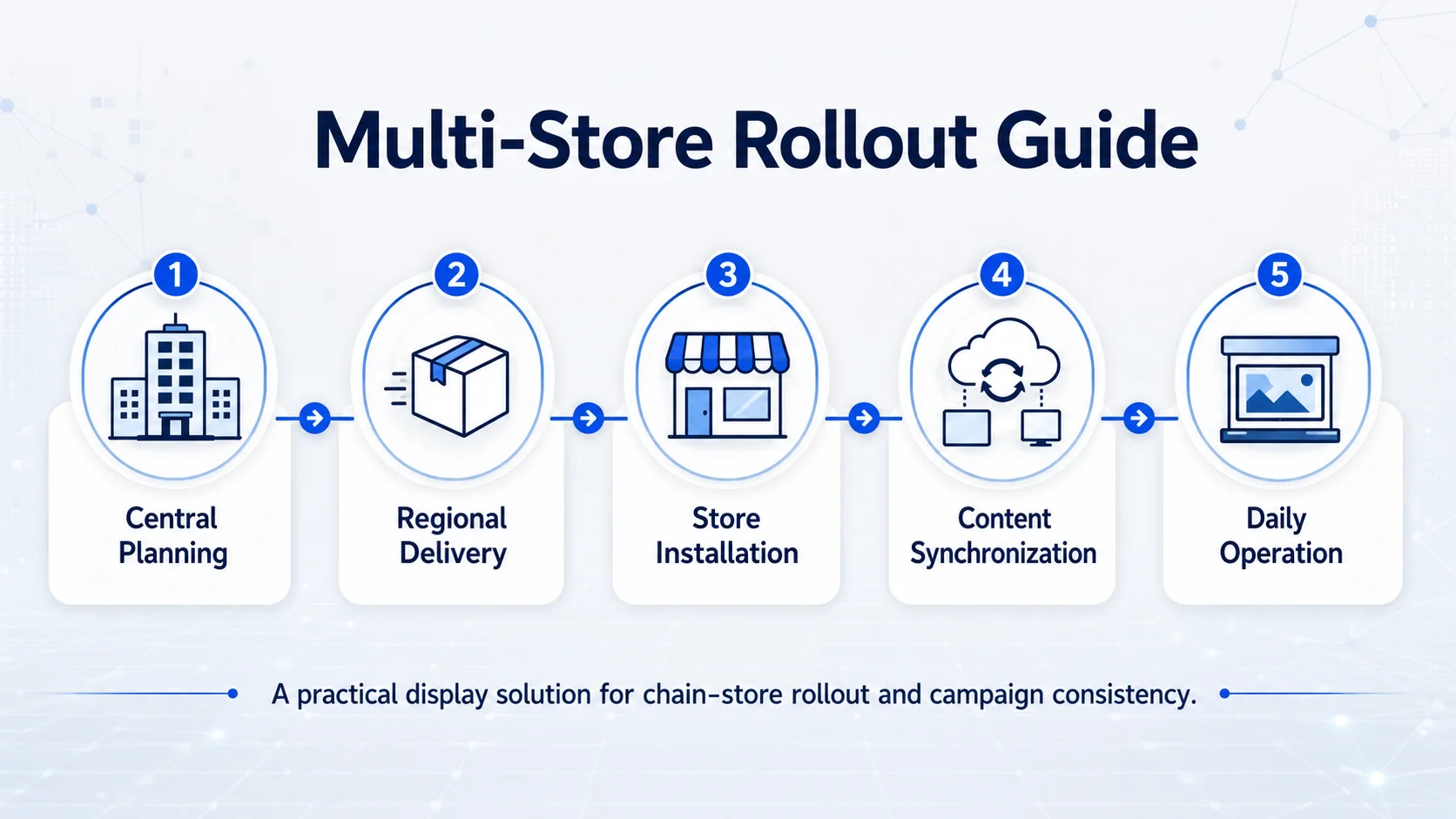

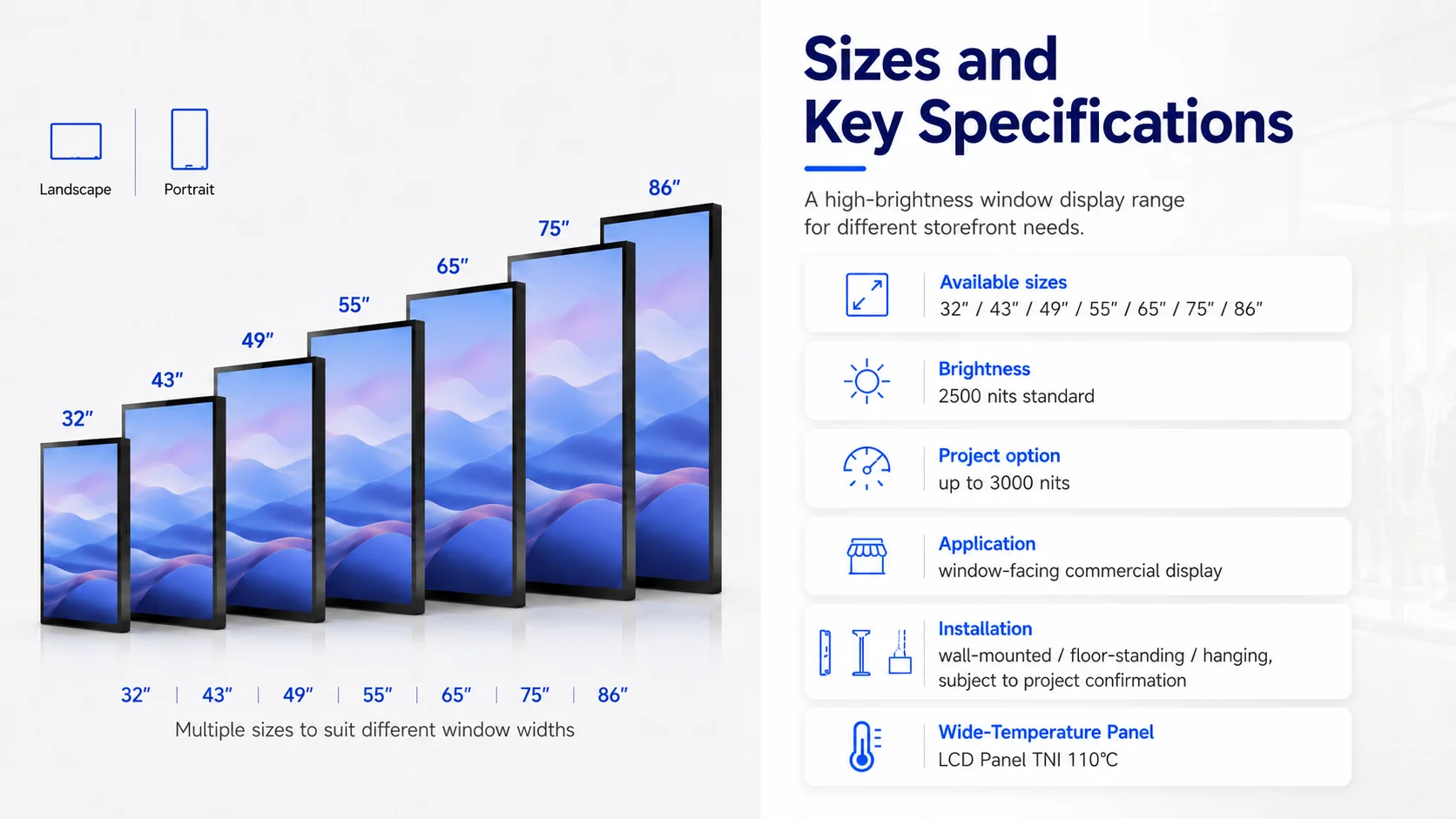

Window Facing Digital Signage Series: 32 to 86 inch models help system integrators match storefront width, viewing distance, screen orientation, and rollout quantity for narrow-window pilots, chain-store rollouts, and large storefront projects.

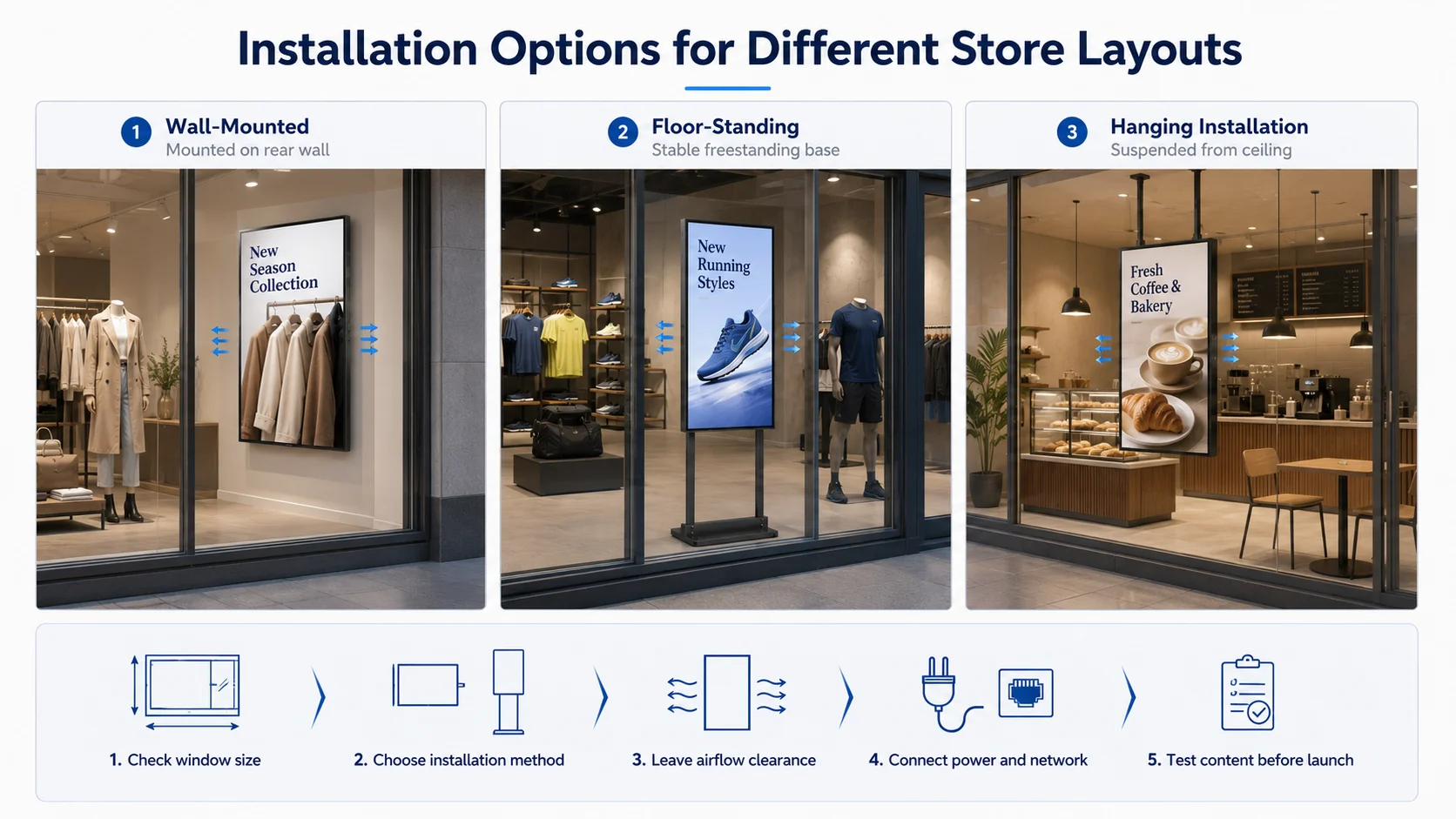

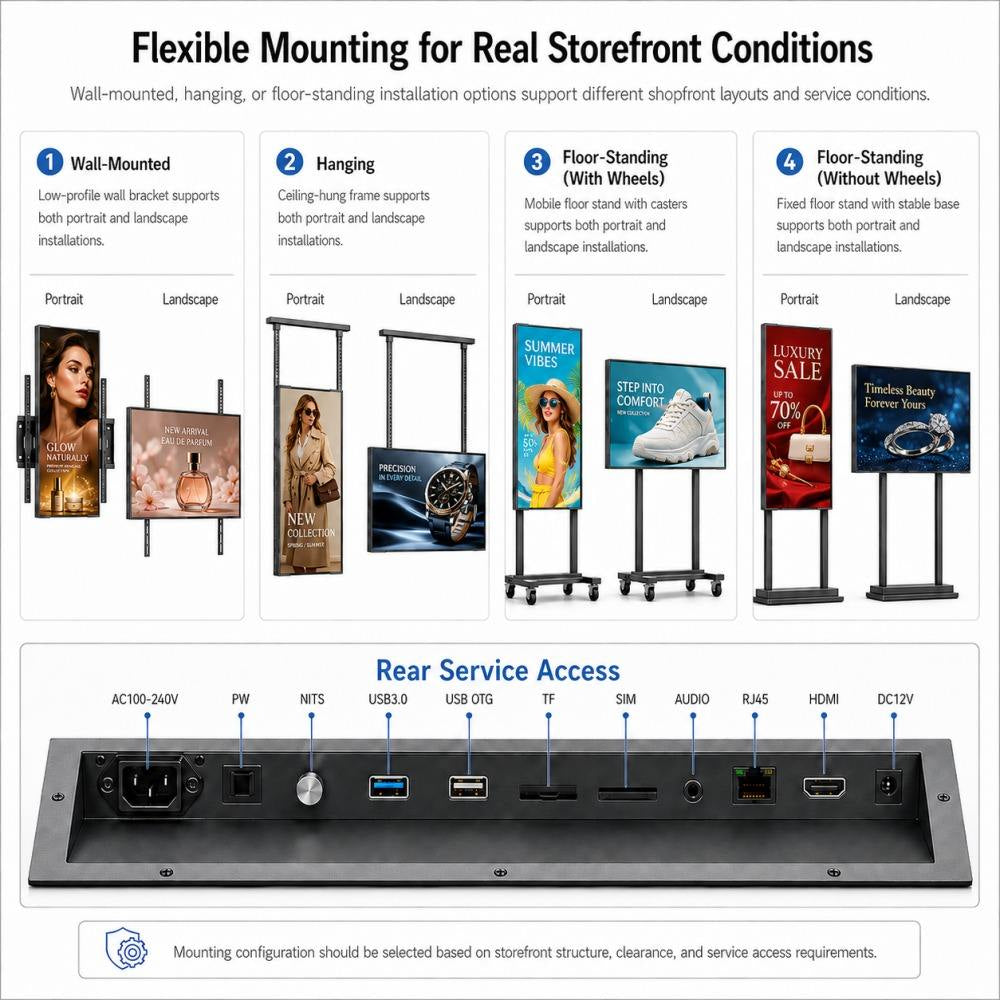

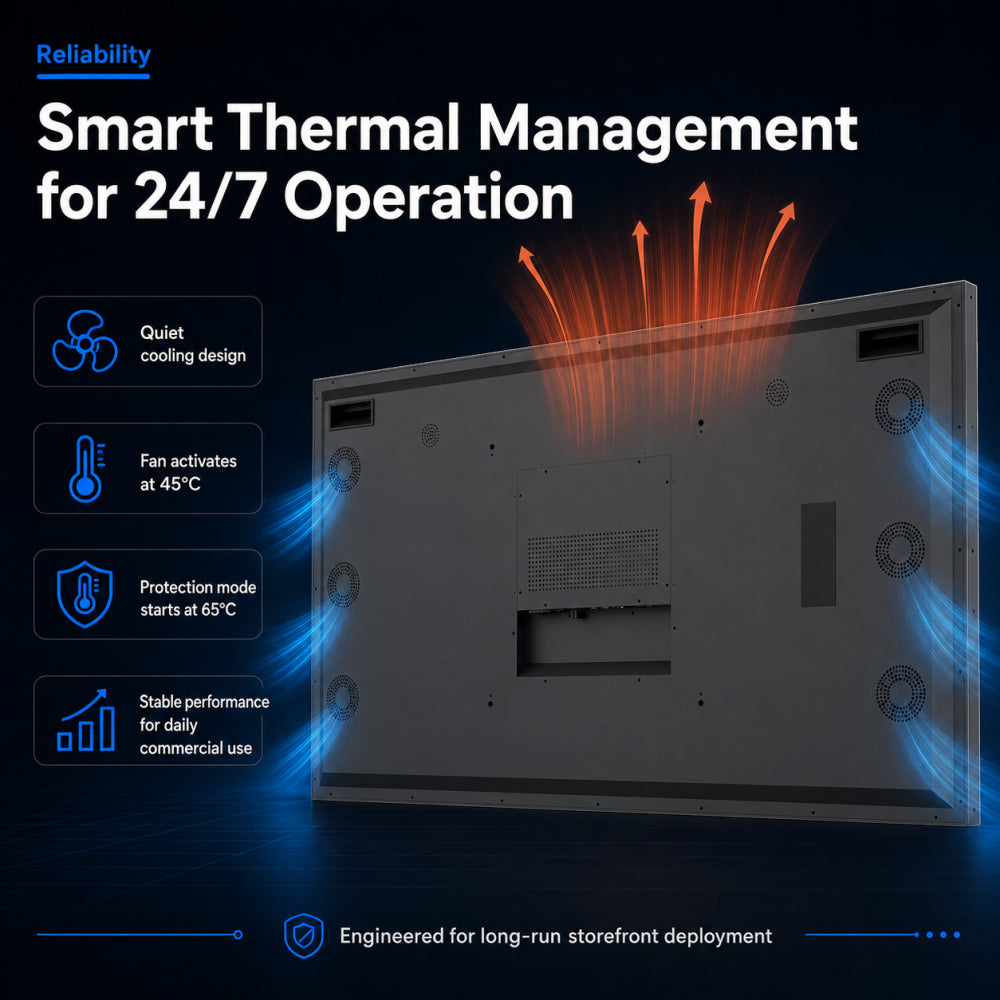

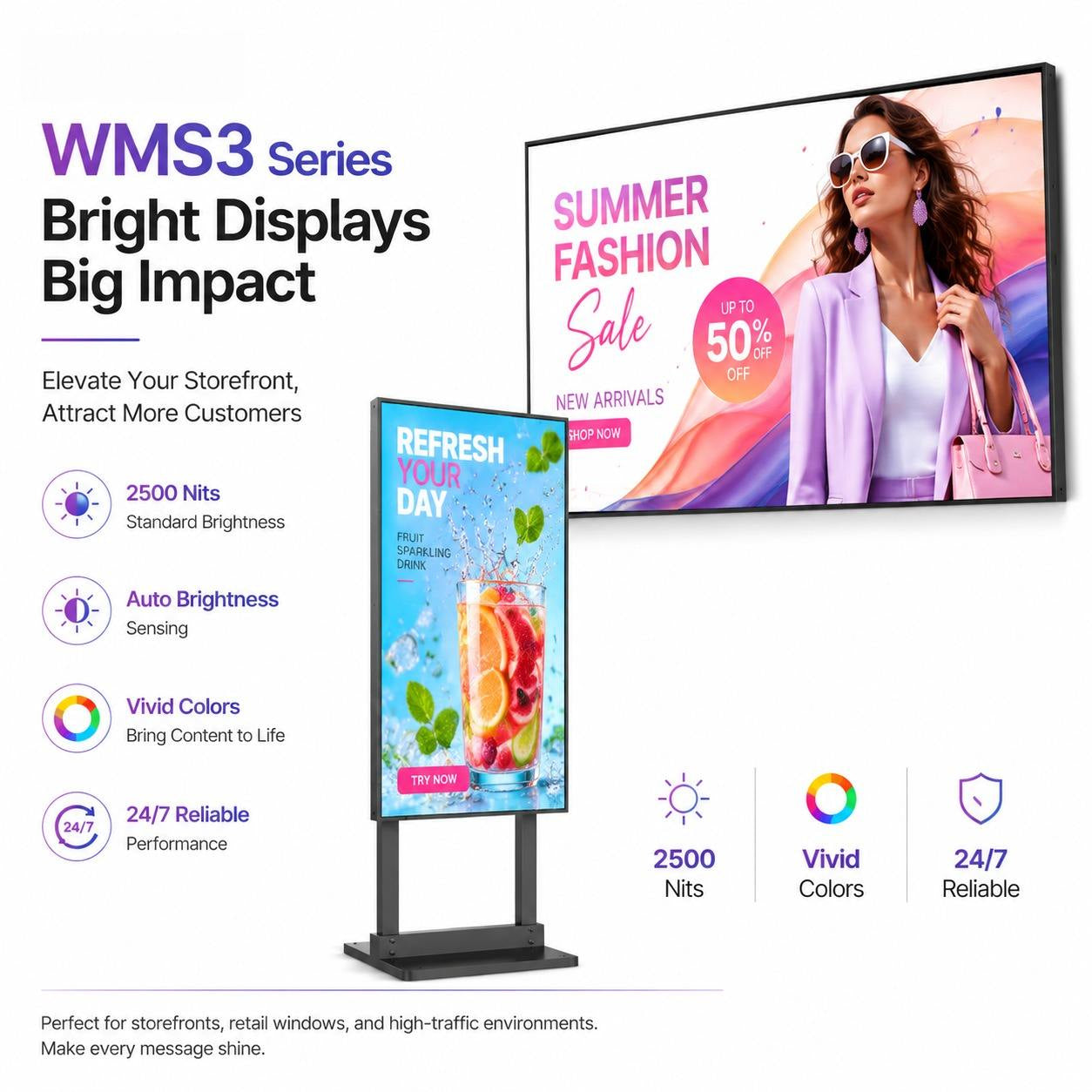

Behind Glass Digital Signage Planning: Wall-mounted, floor-standing, and hanging options are available by size. Airflow clearance, glass spacing, rear vents, site temperature, bracket structure, and cable routing should be reviewed before installation.

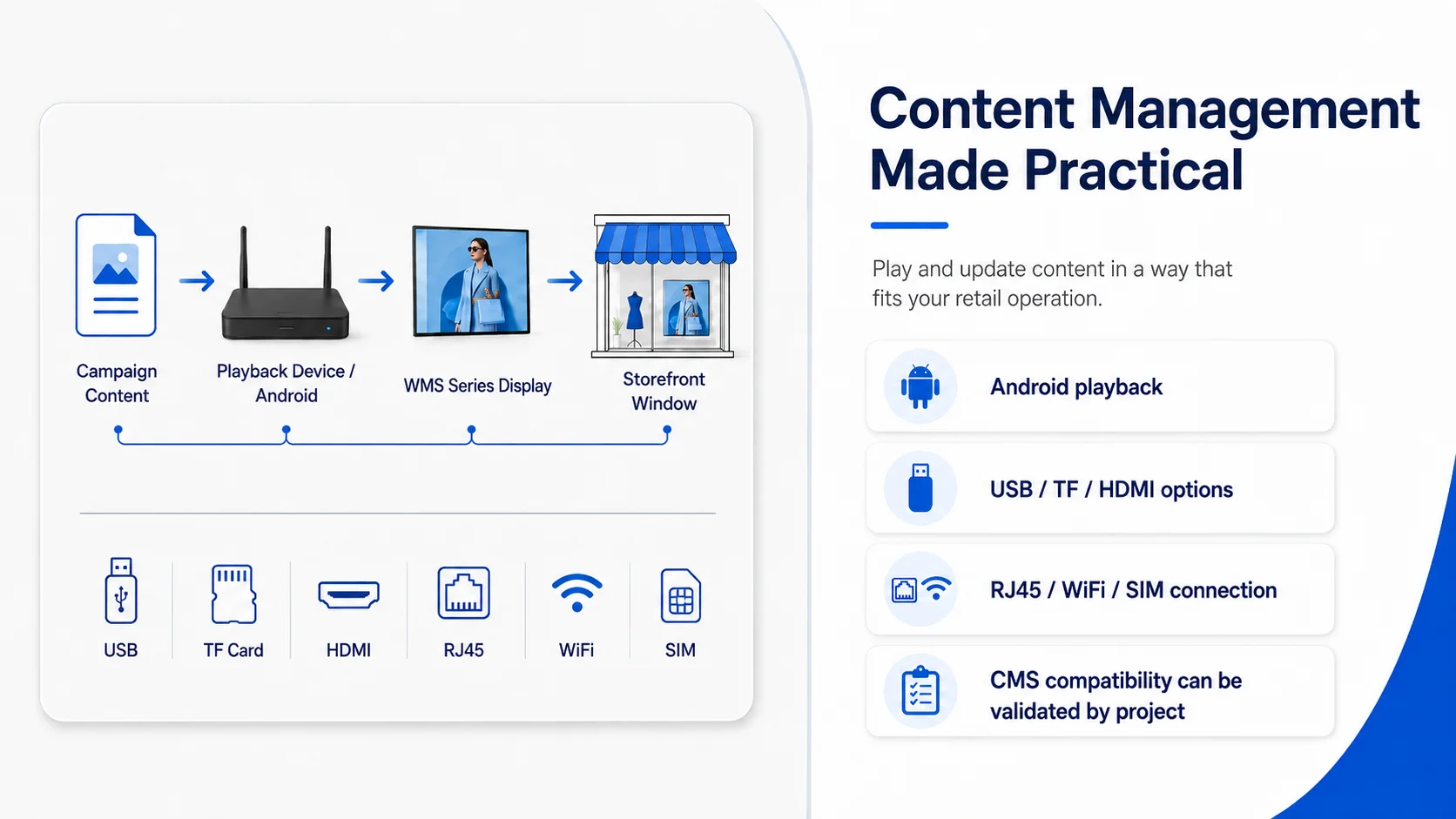

Retail Content Paths and Project Proof: Android playback, USB, TF, RJ45, WiFi, SIM, and optional CMS workflows support retail content updates. Packing photos, QC records, aging test, warranty terms, and CE, FCC, RoHS files apply by covered exact SKU.

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

High Brightness (3000 Nits) Mini LED Backlit LCD Window Display Digital Signage Screen for Shopping Mall Elevator OEM Retail

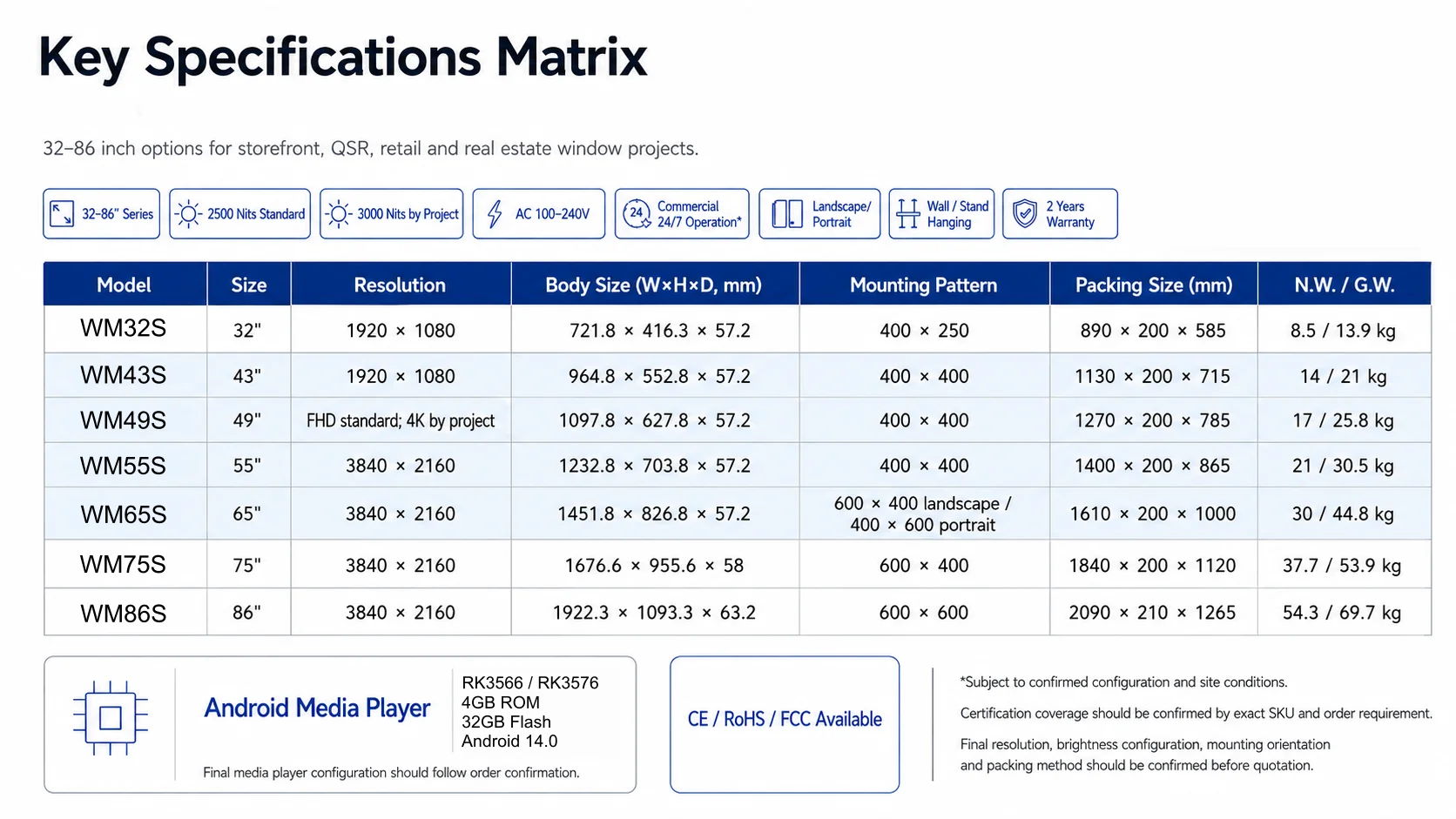

Product Paramenters

 Parameter unit 32" 43" 49" 55" 65" 75" 86"
Display Size inch 32" 43" 49" 55" 65" 75" 86"
Resolution px 1920x1080 1920x1080 1920x1080 1920x1080 3840x2160 3840x2160 3840x2160
Active Display Area mm 702.8x397.3 942x530.4 1075x605 1210x680.8 1429x804 1651.2x930.2 1895x1066
Aspect Ratio   16:09 16:09 16:09 16:09 16:09 16:09 16:09
Brightness cd/m2 / nits 3000 nits 3000 nits 3000 nits 3000 nits 3000 nits 3000 nits 3000 nits
Contrast Ratio (Typ.)   1200:1 1200:1 1200:1 1200:1 1200:1 1200:1 1200:1
Viewing Angle (H/V) degree 178/178 178/178 178/178 178/178 178/178 178/178 178/178
Color   16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Response Time (G-to-G) ms 6ms 6ms 6ms 6ms 6ms 6ms 6ms
Operation Hour   24/7 24/7 24/7 24/7 24/7 24/7 24/7
Loud Speaker   5W, 8Ω (2 sets) 5W, 8Ω (2 sets) 5W, 8Ω (2 sets) 5W, 8Ω (2 sets) 5W, 8Ω (2 sets) 5W, 8Ω (2 sets) 5W, 8Ω (2 sets)
Type   Internal Internal Internal Internal Internal Internal Internal
Power Supply   AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz AC 100-240 V~ (+/-10%), 50/60 Hz
Max Power W/h as shown 130 180 140 280 450 560 820
Sleep mode   less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W
Off mode   less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W less than 0.5W
Protection Glass   NO NO NO NO NO NO NO

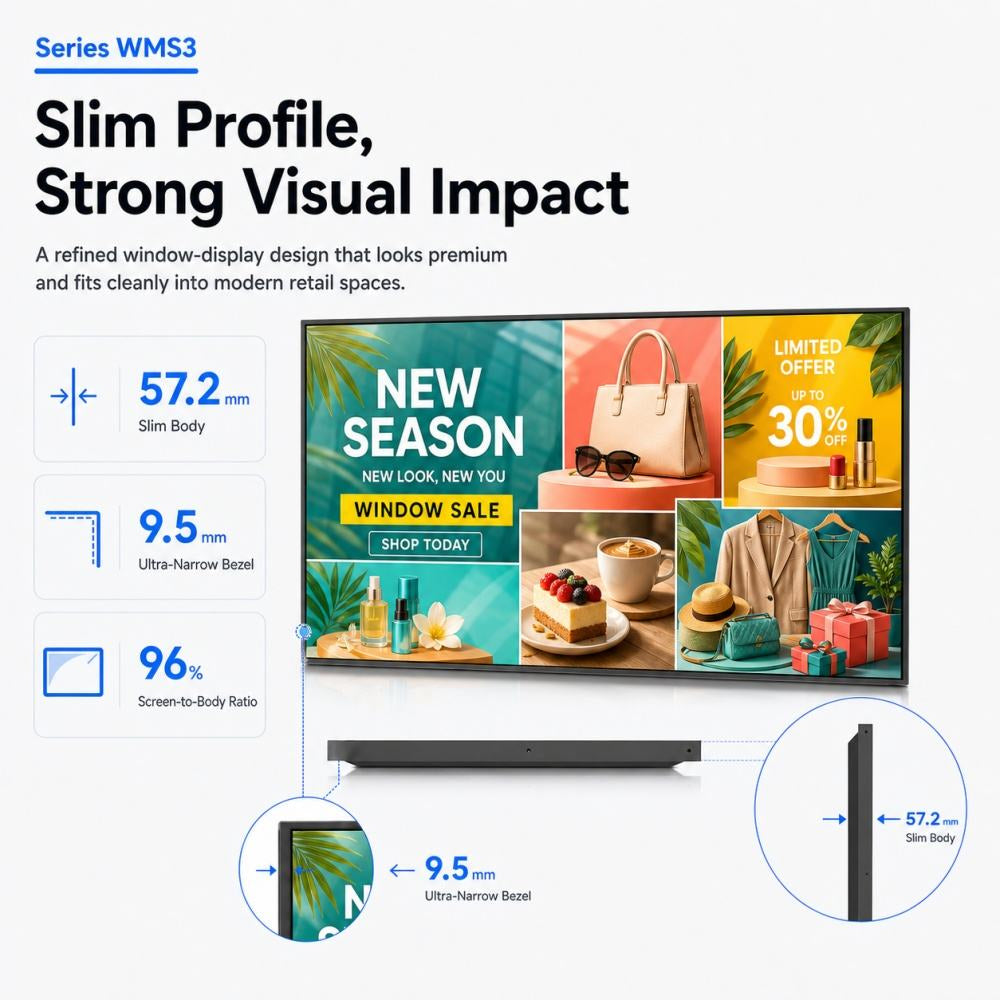

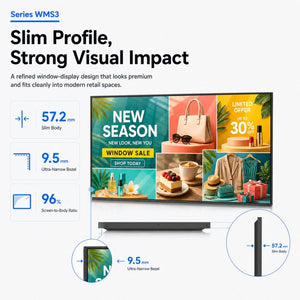

Dimension mm 721.8*57.2*416.3 964.8*57.2*552.8 1097.8*57.2*627.8 1232.8*57.2*703.8 1451.8*57.2*826.8 1674*57.4*953 1926*63.2*1097
VESA HOLE mm 400*250 400*400 400*400 400*400 400*600 400*600 600*600
Package Size as shown 89*20*58 113*20*72 126*20*78.5 139.5*20*86 161.5*20*99 184.5*20.5*111 209*21*127.5
Net Weight kg 8.5 14 17 21 30 38 54.3
Gross Weight kg 12.6 21 25.8 30.3 43 56 68.5
Screen TNI °C 100°C 100°C 105°C 110°C 110°C 110°C 110°C
Operating Environment Temperature °C 0°C ~ 50°C 0°C ~ 50°C 0°C ~ 50°C 0°C ~ 50°C 0°C ~ 50°C 0°C ~ 50°C 0°C ~ 50°C
Operating Humidity   10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80%
Storage Humidity   5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95%
Processor   RK3566 RK3566 RK3566 RK3566 RK3566 RK3566 RK3566
RAM   4G 4G 4G 4G 4G 4G 4G
Flash   32G 32G 32G 32G 32G 32G 32G
USB   USB2.0 HOST (X2) USB2.0 HOST (X2) USB2.0 HOST (X2) USB2.0 HOST (X2) USB2.0 HOST (X2) USB2.0 HOST (X2) USB2.0 HOST (X2)
LAN   10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only) 10M/100M Ethernet (Network version screen only)
External memory   8G/16G/32G/64G 8G/16G/32G/64G 8G/16G/32G/64G 8G/16G/32G/64G 8G/16G/32G/64G 8G/16G/32G/64G 8G/16G/32G/64G
Multimedia   Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG) Video (MPG, AVI, MP4, RM, RMVB, TS); Audio (MP3, WMA); Image (JPG, GIF, BMP, PNG)
Media Resolution   1920*1080 / 3840*2160 1920*1080 / 3840*2160 1920*1080 / 3840*2160 1920*1080 / 3840*2160 1920*1080 / 3840*2160 1920*1080 / 3840*2160 1920*1080 / 3840*2160
Wi-Fi   802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only) 802.11b/g/n Ethernet (Network version screen only)
Operating System   Android 14 Android 14 Android 14 Android 14 Android 14 Android 14 Android 14
Safety   CE ROHS CE ROHS CE ROHS CE ROHS CE ROHS CE ROHS CE ROHS
Included   Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card
Type of packaging   Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden case Carton box / honeycomb box + wooden c
